- Substrate : Patterned Sapphire Basically, this technique is applicable to all substrates

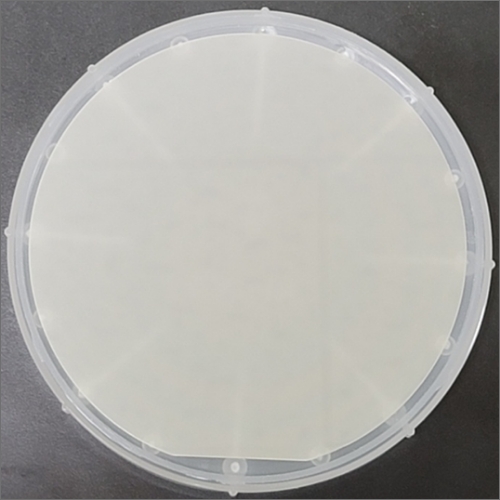

(sapphire, Si, SiC and GaN). - Wafer Size : 2 inch, 4 inch, 6 inch Normal Size : 4 inch
- Wavelength : 620~670 nm Can be changed according to
customer request
Wall Plug Efficiency over 1%
** Recently, we have achieved a WPE of over 2%. New data will be updated soon.

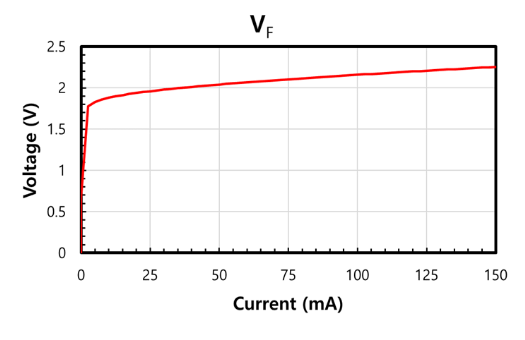

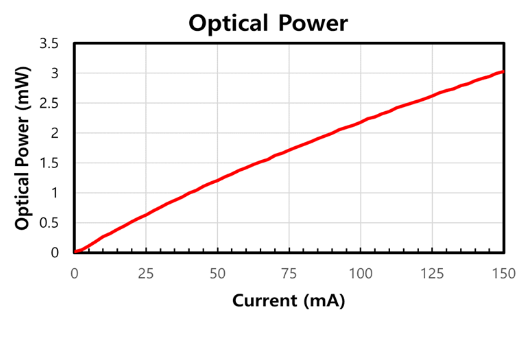

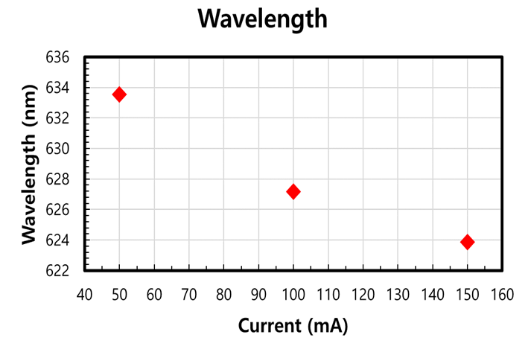

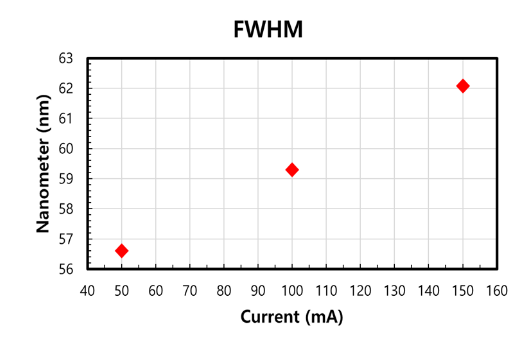

# Characteristic Curves

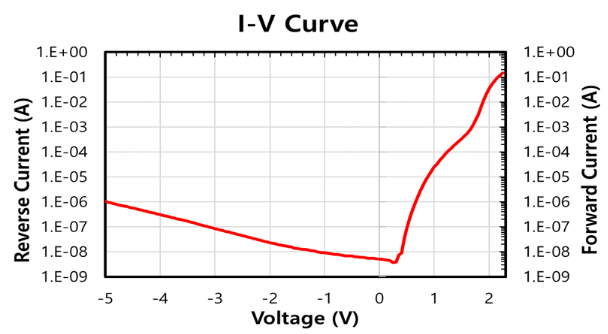

- L-I-V Measurement @ room temp, Integrating sphere

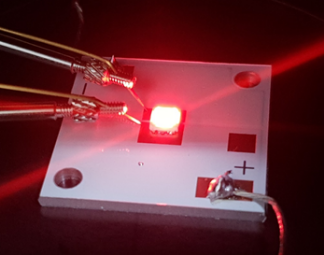

- LED chip size: 650㎛ x 650 ㎛ flip chip
- Leakage current: 10~20 ㎂ @-5V
